StencilStream

StencilStream is a SYCL-based simulation framework for iterative stencil codes, primarily targeting FPGAs. With StencilStream, application developers and domain scientists can merely write down their stencil code definition and obtain a fully functional and optimized, FPGA-accelerated application.

Design Goals

There are many stencil acceleration frameworks available, even for FPGAs. However, many of them use customized toolchains to support domain-specific languages, which makes them both hard to use for real-world applications and hard to extend. Therefore, StencilStream uses the SYCL/oneAPI framework and C++ templates, so that it is:

  • Simple: The first steps don't take much and one can build and verify a simple app very quickly.
  • Versatile: Actual applications have special needs and properties, and StencilStream supports them.
  • Performant: Domain Scientists usually aren't FPGA experts or performance engineers. With StencilStream, they don't have to be and still get highly performant applications.

Examples

We have implemented multiple example applications. One is a simple sketch to show how to get started, one is a benchmark, and two are proper applications that use StencilStream's advanced features. They are presented in the following:

Conway's Game of Life

Our implementation of Conway's Game of Life is found in the subfolder examples/conway. It reads in the current state of a grid from standard-in, computes a requested number of iterations, and then writes it out again.

HotSpot

This our implementation of the HotSpot benchmark from the Rodinia Benchmark Suite, found in the subfolder examples/hotspot. It achieves an arithmetic throughput of more than 1 TFLOPS on a Bittware 520N accelerator using an Intel Stratic 10 X 2800 FPGA.

FDTD

The FDTD application in examples/fdtd is used to simulate the behavior of electro-magnetic waves within micro-cavities. The computed experiment is highly configurable, using configuration files written in JSON. Computationally, it is interesting because it utilizes StencilStream's time-dependent value feature to precompute the source wave and the sub-iterations feature to alternate between a electric and a magnetic field update. Below, you find a rendering of the final magnetic field, computed for the "Max Grid" experiment:

Magnetic field within a micro-cavity, computed by the FDTD app

Convection

The convection app, found in examples/convection, simulates the convection within Earth's Mantle. It is a port of an example app for the ParallelStencil.jl framework and can also be configured using a JSON file. Below, you find the animated output of the default experiment.

A video showing convection, computed by the Convection app

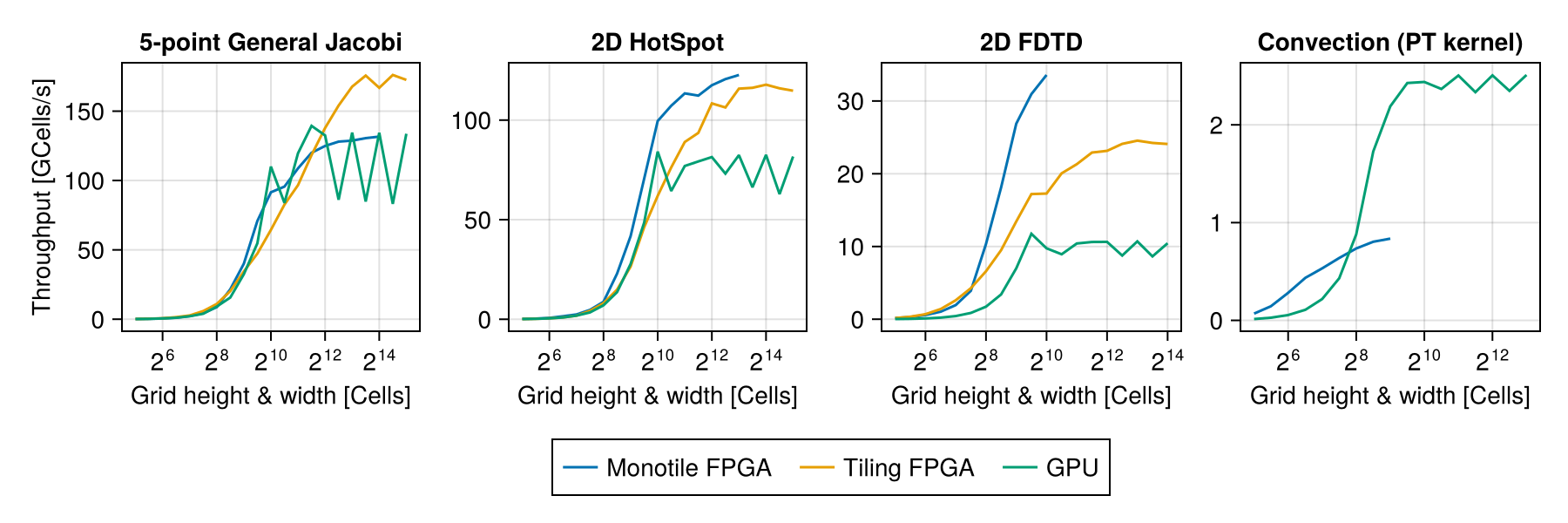

Performance & Hardware Usage

Metric HotSpot (Monotile) HotSpot (Tiling) FDTD (Monotile) FDTD (Tiling) Convection (Monotile)
Replications (Total PEs) 280 (280) 224 (224) 100 (200) 95 (190) 8 (24)
Grid Size (height × width) 720 × 1024 16384 × 16384 512 × 512 4608 × 4608 512 × 1536
No. of Iterations 280 1120 204580 184911 100
Modeled Update Rate 73.51 GCells/s 48.23 GCells/s 21.79 GCells/s 14.30 GCells/s 1.26 GCells/s
Measured Update Rate 73.40 GCells/s 37.54 GCells/s 21.09 GCells/s 14.20 GCells/s 0.83 GCells/s
Throughput [GFLOPS] 1085.97 563.11 421.80 284.00 54.78
Clock Frequency 337.50 MHz 317.50 MHz 308.33 MHz 284.38 MHz 335.00 MHz
ALMs (% of 706k) 426k (60.4%) 481k (68.1%) 304k (43.2%) 444k (62.9%) 462k (65.5%)
BRAMs (% of 9094) 3415 (37.6%) 6025 (66.3%) 4073 (44.8%) 6780 (74.6%) 2848 (31.3%)
DSPs (% of 4713) 2522 (53.5%) 2240 (47.5%) 1725 (36.7%) 1734 (38.8%) 1031 (22.1%)

All applications were built and benchmarked at commit 5d82883fe3302f6bbf7a1adcc353ed464dd1d35e, using Intel OneAPI 23.2.0, Boost 1.81.0, and the Bittware 520N HPC board support package 20.4.0.

Licensing & Citing

StencilStream is published under MIT license, as found in LICENSE.md. When using StencilStream for a scientific publication, please cite the following:

@inproceedings{opdenhoevel2024stencilstream,
author = {Opdenhövel, Jan-Oliver and Alt, Christoph and Plessl, Christian and Kenter, Tobias},
title = {StencilStream: A SYCL-based Stencil Simulation Framework Targeting FPGAs},
booktitle = {Proc. Int. Conf. on Field Programmable Logic and Applications (FPL)},
year = {2024}
}
